SMT Line PCB Xray Automatic Inspection Machine (AXI)
Product Introduction

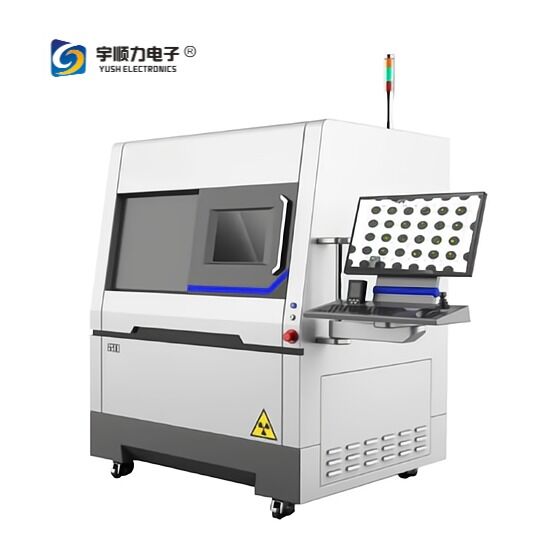

The YS-8200 X-Ray Automatic Inspection Machine is engineered to deliver high-resolution imaging solutions specifically for the electronics manufacturing sector. This versatile system excels in various PCB manufacturing applications including BGA, CSP, QFN, Flip Chip, COB, and a comprehensive range of SMT components.
As a powerful support tool for process development, quality monitoring, and rework operations, the YS-8200 features an intuitive software interface capable of meeting both small and large-scale factory requirements.
Key Features
- 90kV 5µm closed X-ray tube with 4/2" image intensifier and 2 megapixel CCD camera
- Multi-function workstation with ±60° tilt and X-Y multi-axis movement
- X-ray tube & detector automatic lifting and descending with convenient target positioning
- Multi-function DXI image processing system with CNC programmable detection
- Maximum loading area: 510mm × 420mm, inspection area: 435mm × 385mm, 600X magnification
Technical Specifications
| Item |
Model |
YS-8200 |
| X-Ray Tube |
Max. Voltages, Type |
90kV, Closed |
| Power Consumption |
|
8W |
| Focal Spot Size |
|
5 μm |
| Motion range (Up and Down) |
|
150mm |
| Magnification |
|
600X |
| Detector |
Intensifier |
4"/2" (FPD Optional) |
| Resolution |
|
77/110 LP/cm |
| Camera |
|
2 Mega Pixel CCD |
| Motion range (Up and Down) |
|
290mm |
| System Computer |
Operating System |
Industrial PC, Win 7, i7 Processor |
| Monitor |
|
22" LCD |
| Software |
User Interface |
YS Multi-function DXI image processing system |
| Working Platform |
Max. Loading Area |
510mm×420mm |
| Max. Inspection Area |
|
435mm×385mm |
| Max. Loading Weight |
|
10kg |
| Movement Control |
|
Joysticks, Mouse and Keypads |
| Table Tilting Angle |
|
±60° |
| Navigation |
Camera |
HD Camera, Laser point |
| Equipment Features |
Power Supply |
AC 110~220V (±10%) 50Hz, 1.0kW |
| Outline Dimensions |
|
1080(W)×1180(D)×1730(H)mm |
| System Weight |
|
1150 kg |
