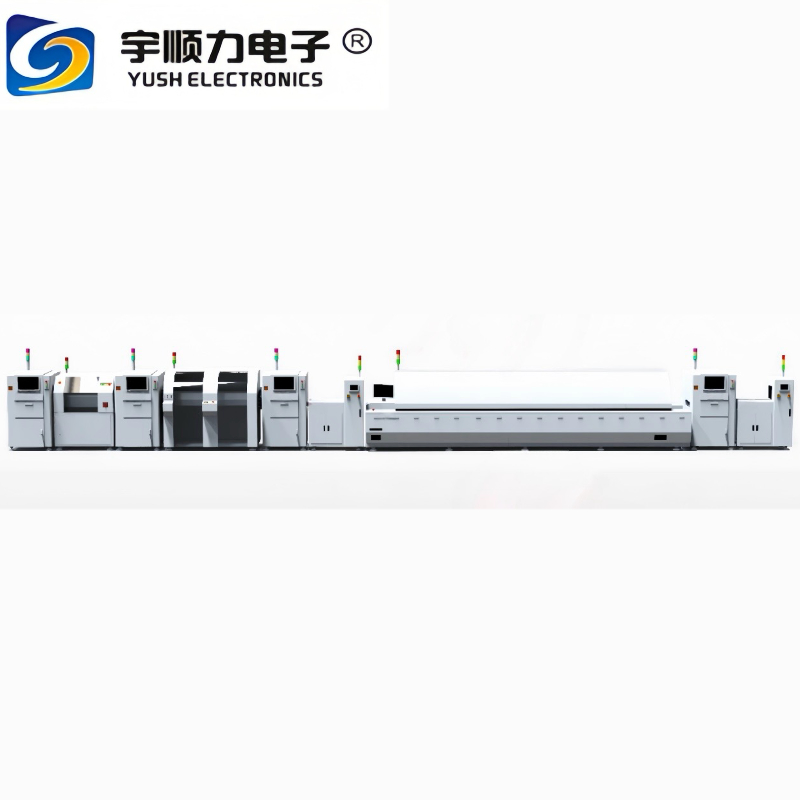

High Speed Semi Automatic SMT PCB Assembly Line with 380V Power Supply
High Speed Semi Automatic SMT PCB Assembly Line with 380V Power Supply
High Speed Production Machinery SMT Semi Automatic PCB Assembly Line with 380V Power Supply
Product Specifications
| Attribute |
Value |
| Application |
SMT PCB Assembly Production Line |
| Warranty |
1 Year |
| Machinery Test Report |
Provided |
| Video Outgoing-Inspection |
Provided |
| Power Supply |
380V |
SMT Production Line Components
SMT Stencil Printer (Semi-auto)
| Model |
Y3 |
Y6 |
Y12 |
| Accuracy |
+/- 0.05mm |
+/- 0.05mm |
+/- 0.05mm |
| PCB Size |
300 x 350 mm |
600 x 350 mm |
1200 x 350 mm |
| Platform size |
300 x 350 mm |
700 x 400 mm |
1350 x 400 mm |
| Stencil Size(mm) |
370*470,550*650 |
370*470,550*650 |
370*470,550*650,1500*650 |
| PCB Thickness |
0.2 - 6 mm |
0.2 - 6 mm |
0.2 - 6 mm |
| Stencil Positioning |
Manual |
Manual |
Manual |
| Cycle Time |
< 10 Sec. |
< 10 Sec. |
< 12 Sec. |
| Power Consumption |
200 W |
200 W |
200 W |
| Power Supply |
1 -PH, 220VAC 50/60HZ |
1 -PH, 220VAC 50/60HZ |
1 -PH, 220VAC 50/60HZ |
| Air Pressure |
4.5-6 kg/cm |
4.5-6 kg/cm |
4.5-6 kg/cm |
| Squeegee Speed |
0-1500mm/sec |
0-1500mm/sec |
0-1500mm/sec |
| Dimension |
850x750x1650 mm |
1050x750x1650 mm |
1660x750x1650 mm |
| Weight |
280 Kg |
300 Kg |
356 Kg |
| Squeegee Length |
250mm |
250mm |
250mm |
| Platform Height |
950mm |
950mm |
950mm |
Option: Special size can be customized
Reflow Oven
| Model |
L8 |
L10 |
| Dimension (L*W*H)mm |
5000x1250x1490 |
5800x1250x1490 |
| Weight |
Approx. 1600KG |
Approx. 1800KG |
| Number Of Heating Zones |
Up8/Bottom8 |
Up10/Bottom10 |
| Length Of Heating Zones |
3121mm |
3891mm |
| Rail Width Adjustment |
M(option:A) |
M(option:A) |
| Exhaust Volume |
10M3/minx2 Exhausts |
10M3/minx2 Exhausts |
| Control System |
PLC+Computer |
PLC+Computer |
| Temperature Control Method |
PID + SSR |
PID + SSR |
SMT Factory Setup Services
- We Provide Full SMT Solution for You
- We Provide Core Technology With Our Equipments
- We Provide The Most Professional Tech Service
- We Have Wealthy Experience on SMT Factory Setup
- We Can Solve Any Question About SMT
Keywords: SMT Line, SMT Prodution Line, SMT Assembly Line, SMT Stencil Printer, Solder Paste Printer, Pick and Place Machine, Chip Mounter, SMT Placement, Reflow Oven, SMT Reflow Soldering Oven, PCB Reflow Oven, SMT Loader, PCB Unloader, SMT Conveyor, Wave Soldering Machine, DIP Wave Soldering Equipment, Selective Wave Soldering Machine, PCBA Coating Machine, PCBA Insertion Machine, PCBA Router Machine.
YUSH Electronic Technology Co.,Ltd was founded in 2004, is located in the world manufacturing city Jiangsu, specializing in professional PCB separator/PCB depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.
Since 2004 the company has invested in developing and manufacturing the PCB separator and PCB depaneling machine. We focus on product quality, safety, and innovation, producing high quality, stable performance, cost-effective products that improve production yields and increase productivity. We offer various types of PCB separators including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router models. Our products are used worldwide, and YUSH has become one of the largest PCB separator production bases in China.
