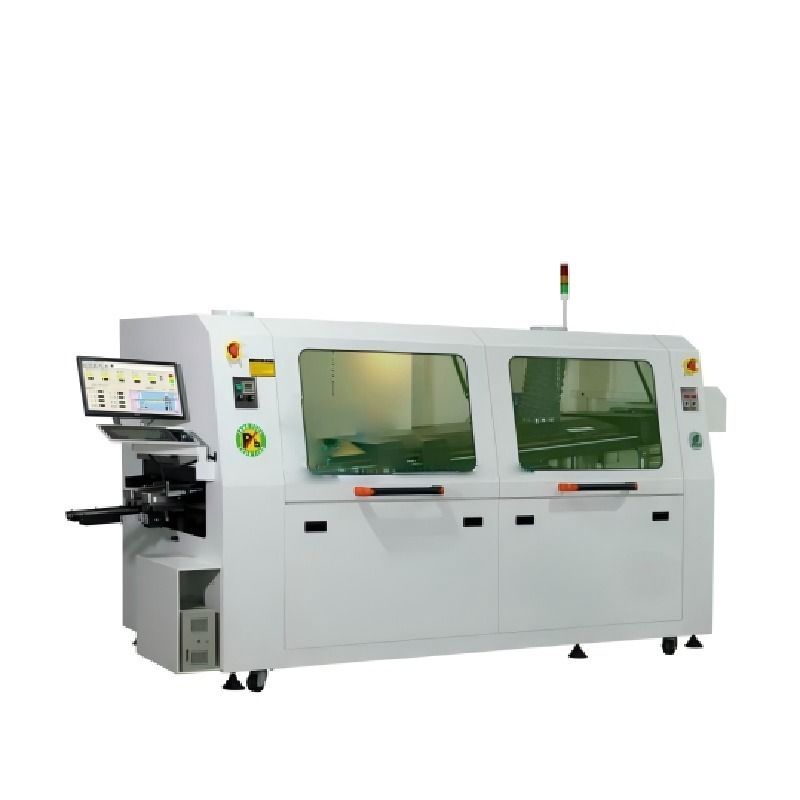

High Efficiency Wave Soldering Machine
, High Speed Wave Soldering Machine
High Efficiency Wave Soldering Machine High Speed
INTRODUCTION:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled,
accurate and reliable.
4. Flux recovery container drawer design, easy to clean.
5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Titanium solder fingers, high strengthened double v-groove with tin resistant
7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure
the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.
9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
11. Timer startup feature for solder pot, solder melted in within 90 minutes.
12. Automatic finger cleaner equipped.
13. With black box memory function, the machine can always store the SPC data, improve work efficiency.
14. Intelligent monitoring and alarm system ensure the stable performance and operators’safety
